Q: What is an AI Server PCB?

An AI Server PCB is a high-performance printed circuit board designed for artificial intelligence servers, featuring GPU boards, OAM modules, and high-layer count architectures to support machine learning and deep learning workloads.

Q: Why is high-layer count important for AI Server PCB?

High-layer count AI Server PCB (30–40 layers) enables dense interconnectivity between CPUs, GPUs, memory, and network interfaces, ensuring signal integrity and power integrity at high speeds.

Q: What materials are best for AI Server PCB?

Low-loss materials like Megtron 6, Megtron 7, or Isola Tachyon 100G are recommended for AI Server PCB to minimize signal loss at frequencies up to 32 GT/s.

Q: How does OAM differ from standard GPU boards in AI Server PCB?

OAM (OCP Accelerator Module) is a standardized form factor for AI accelerators, with specific mechanical constraints and high-layer counts (12–20 layers), while GPU boards are larger and often exceed 20 layers.

Q: What are the thermal management techniques for AI Server PCB?

AI Server PCB uses embedded copper coins, thermal vias, heat sink integration, and CFD simulation to manage heat dissipation up to 500W per GPU.

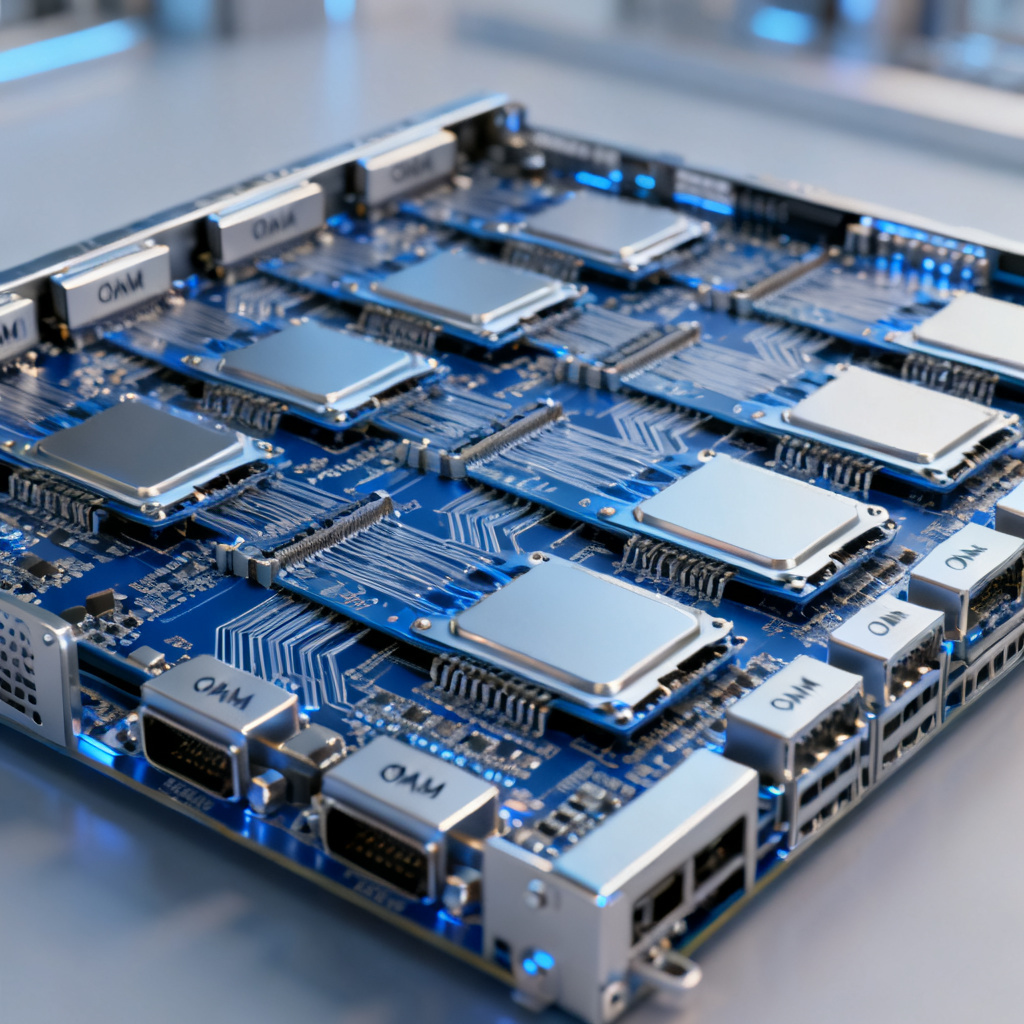

AI Server PCB overview showing GPU boards and high-layer count architecture

AI Server PCB technology is the backbone of modern artificial intelligence infrastructure, powering GPU boards, OAM modules, and high-layer count designs that drive machine learning and deep learning workloads. This comprehensive guide covers every aspect of AI Server PCB design, materials, manufacturing, and quality assurance to help B2B buyers and engineers make informed decisions.

First paragraph immediately introduces the main keyword and addresses user search intent for technical depth and procurement guidance.

1. Understanding AI Server PCB Architecture

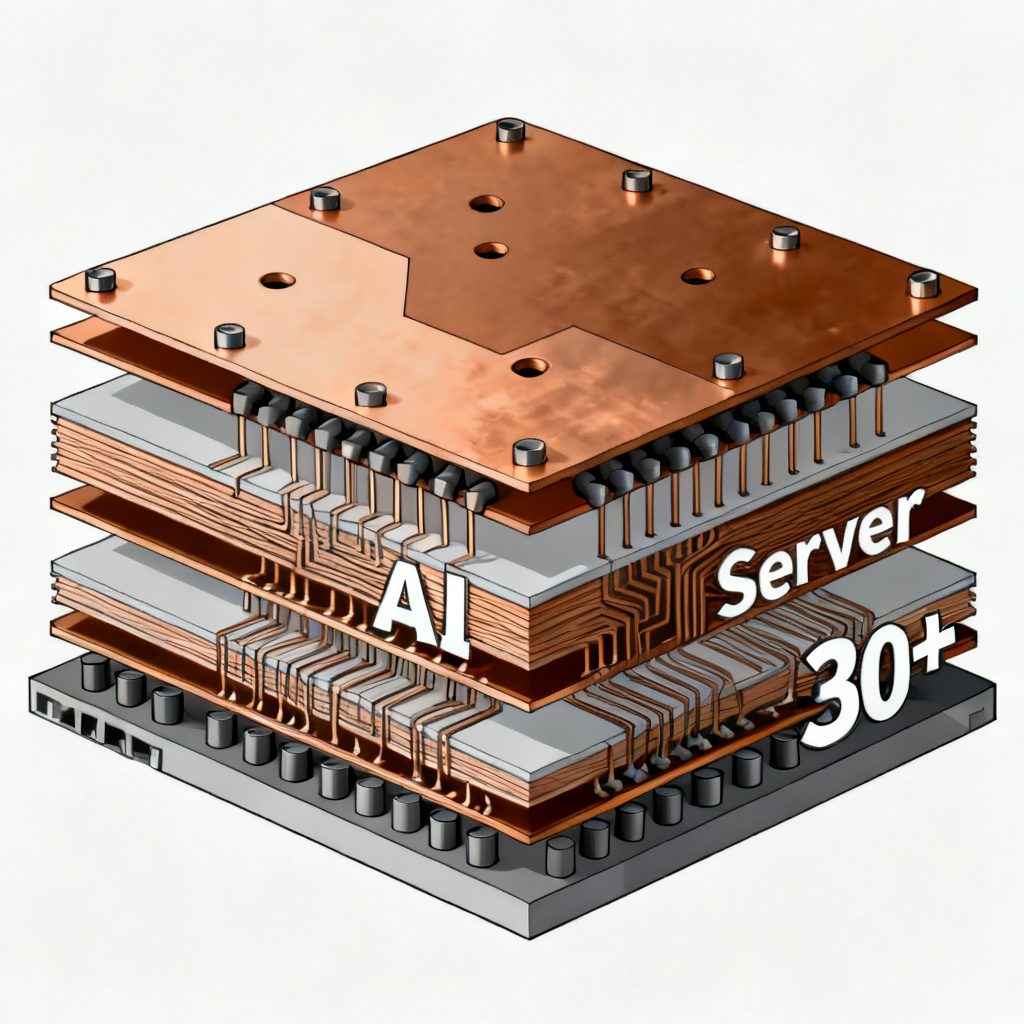

AI Server PCB architecture showing layer stackup and high-layer count design

AI Server PCB architecture differs fundamentally from standard PCBs due to extreme complexity, high-speed signaling, and power delivery demands. Key components include GPU boards, OAM (OCP Accelerator Module), and high-layer count PCBs.

1.1 GPU Boards in AI Server PCB

GPU boards are large, multi-layer PCBs (typically 16–30+ layers) housing multiple GPUs like NVIDIA A100, H100, or AMD MI series. They require ultra-low impedance power planes, high-density routing, and robust thermal dissipation structures such as copper coin or heavy copper layers. These AI Server PCB designs often feature BGA packages with thousands of pins, demanding precise via-in-pad technology and microvias for signal integrity.

1.2 OAM (OCP Accelerator Module) in AI Server PCB

Defined by the Open Compute Project, OAM is a standardized form factor for AI accelerators. OAM PCBs are smaller but equally complex, with high-layer counts (12–20 layers) and specific mechanical constraints (e.g., 75mm x 80mm or 100mm x 100mm). They integrate PCIe Gen 4/5 or NVLink interfaces, requiring controlled impedance (e.g., 85Ω or 100Ω differential pairs) and minimal crosstalk. AI Server PCB designs for OAM must comply with OCP specifications including via stub reduction and back-drilling for high-frequency signals.

1.3 High-Layer Count PCBs in AI Server PCB

For AI servers, layer counts often exceed 20 layers, reaching 30–40 layers in some designs. These AI Server PCB boards enable dense interconnectivity between CPUs, GPUs, memory modules (HBM, DDR5), and network interfaces (e.g., 400G Ethernet). High-layer count PCBs demand precise stack-up design, with multiple ground and power planes to manage EMI and ensure signal return paths.

2. Material Selection for AI Server PCB

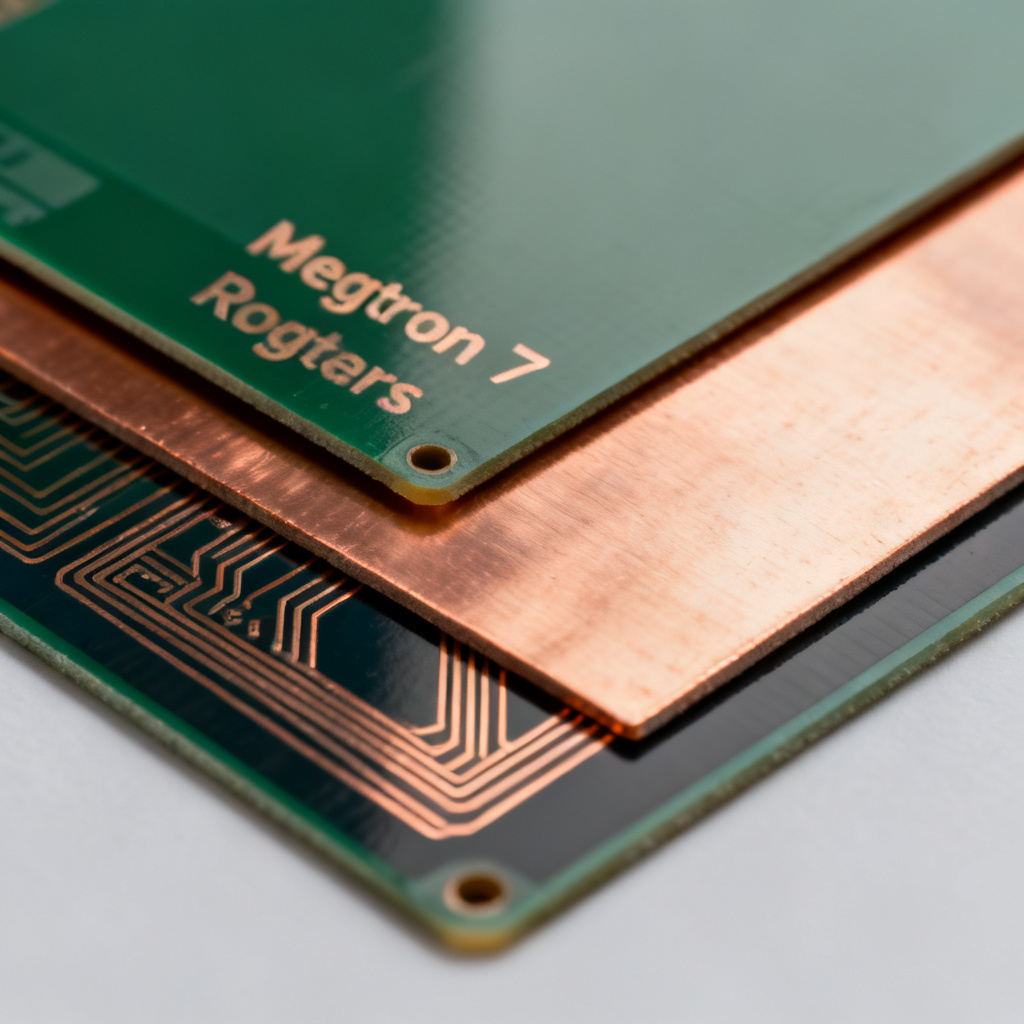

AI Server PCB material selection showing Megtron and low-loss laminates

Choosing the right substrate material is critical for AI Server PCB performance and reliability. Top-tier sources emphasize low-loss materials, high-Tg and thermal performance, copper weight, and advanced prepregs.

2.1 Low-Loss Materials for AI Server PCB

For high-frequency signals (e.g., PCIe Gen 5 at 32 GT/s or NVLink at 800 Gbps), standard FR-4 is inadequate. Use materials like Megtron 6, Megtron 7, or Isola Tachyon 100G, which offer low dissipation factor (Df) and low dielectric constant (Dk) stability. These AI Server PCB materials minimize signal attenuation and jitter.

2.2 High-Tg and Thermal Performance in AI Server PCB

AI Server PCB designs generate significant heat (200–500W per GPU). Therefore, high glass transition temperature (Tg > 180°C) materials like FR-4 High-Tg (e.g., IT-180A) or polyimide-based laminates are essential. Some designs incorporate thermal management layers, such as embedded copper plates or aluminum core structures, to dissipate heat efficiently.

2.3 Copper Weight and Thickness for AI Server PCB

For power delivery, heavy copper (2 oz or 3 oz) is used for inner layers to handle high currents (up to 100A per rail). Outer layers may use 1 oz copper, but with thick plating for via reliability.

2.4 Advanced Prepregs for AI Server PCB

Low-flow prepregs (e.g., from Panasonic or Rogers) are recommended for via filling and to prevent resin starvation in high-density areas of AI Server PCB designs.

3. Design Considerations for GPU Boards and OAM

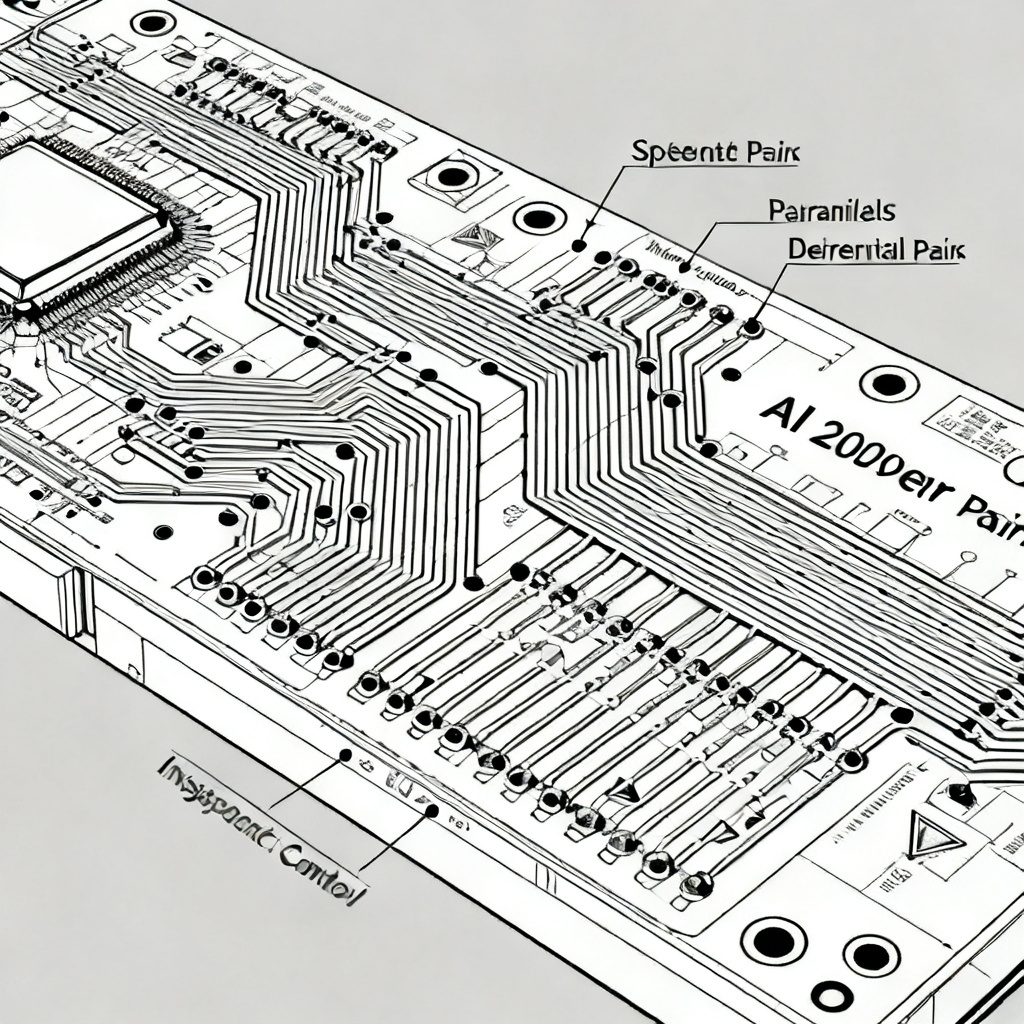

AI Server PCB signal integrity design showing differential pairs and impedance control

Designing AI Server PCB for GPU boards and OAM requires meticulous attention to signal integrity (SI), power integrity (PI), and impedance control.

3.1 Signal Integrity (SI) in AI Server PCB

High-speed differential pairs (e.g., 100Ω for PCIe, 85Ω for NVLink) must be routed with strict length matching (≤1mm tolerance). Use microstrip or stripline topologies, avoiding 90-degree corners (use 45-degree or curved traces). For OAM, the routing must comply with OCP specifications, including via stub reduction and back-drilling for high-frequency signals. AI Server PCB designs require careful SI optimization to maintain data integrity at 32 GT/s and beyond.

3.2 Power Integrity (PI) in AI Server PCB

AI Server PCB designs require multiple voltage rails (e.g., 0.8V, 1.2V, 1.8V, 12V). Use dedicated power planes with low inductance (e.g., 1–2 nH) and decoupling capacitors (MLCCs) placed close to GPU/CPU power pins. For OAM, the power delivery network (PDN) must meet ripple specifications (<1% of voltage).

3.3 Layer Stack-Up Optimization for AI Server PCB

A typical 20-layer stack-up for a GPU board might include: Top (signals), GND, Signal, Power, GND, Signal, Power, GND, etc. Use symmetrical stack-ups to avoid warpage. For high-layer count (>30), consider using multiple core pairs and prepregs to maintain thickness uniformity.

3.4 Via Technology in AI Server PCB

Microvias (laser-drilled, 0.1mm diameter) are used for fine-pitch BGA connections. For OAM, via-in-pad with copper-filled vias is standard to reduce parasitic inductance. Back-drilling is mandatory for through-hole vias in high-speed channels in AI Server PCB designs.

4. Manufacturing Challenges and Solutions for AI Server PCB

Fabricating AI Server PCB pushes the limits of PCB manufacturing. Key challenges include high aspect ratio drilling, registration and layer alignment, copper plating uniformity, solder mask and surface finish, and testing.

4.1 High Aspect Ratio Drilling for AI Server PCB

For thick boards (>3mm), drilling holes with aspect ratios >10:1 (e.g., 0.3mm diameter for 3mm thickness) is difficult. Use specialized drill bits and controlled depth drilling. Laser drilling for microvias requires precise alignment.

4.2 Registration and Layer Alignment for AI Server PCB

With 30+ layers, misalignment can cause short circuits or open connections. Use X-ray registration and automated optical inspection (AOI) for each layer. Staggered via patterns help reduce stress.

4.3 Copper Plating Uniformity for AI Server PCB

For high-layer count boards, electroplating must achieve uniform copper thickness in through-holes and vias. Pulse plating and advanced levelers (e.g., from Atotech) are used to avoid voids.

4.4 Solder Mask and Surface Finish for AI Server PCB

For OAM, LPI (Liquid Photoimageable) solder mask with high thermal stability (e.g., Taiyo PSR-4000) is common. Surface finishes like ENIG (Electroless Nickel Immersion Gold) or ENEPIG are preferred for fine-pitch BGA due to their flatness and wire-bondability.

4.5 Testing and Inspection for AI Server PCB

Flying probe testing for high-density nets, and impedance testing (TDR) for all high-speed lines. X-ray inspection for BGA solder joints and via fill quality.

5. Thermal Management in AI Server PCB

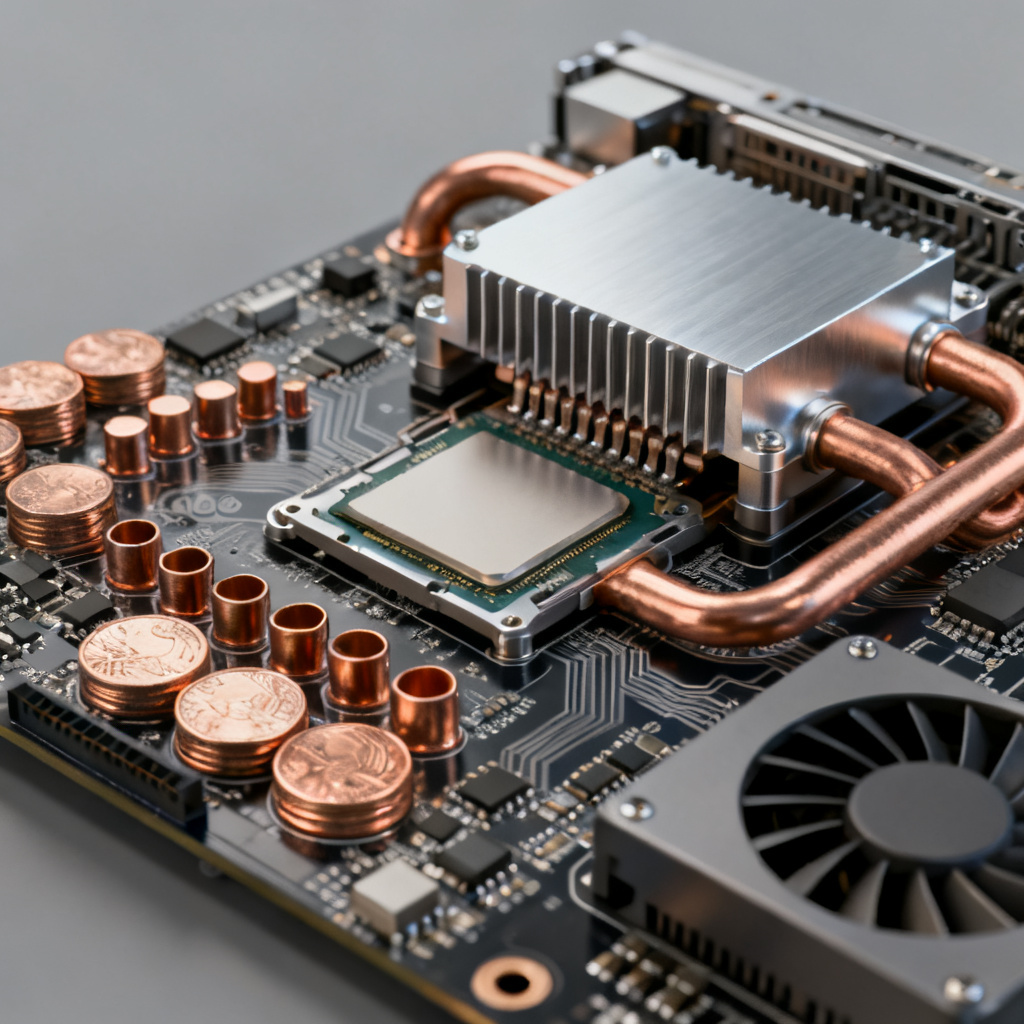

AI Server PCB thermal management showing embedded copper coin and thermal vias

Thermal dissipation is a critical differentiator for AI Server PCB designs. These boards employ embedded copper coins, thermal vias, heat sink integration, and simulation modeling.

5.1 Embedded Copper Coins in AI Server PCB

These are thick copper blocks (1–3mm) inserted into the PCB to conduct heat from GPU packages to heatsinks or chassis. Common in high-power GPU boards.

5.2 Thermal Vias in AI Server PCB

Arrays of vias (0.3mm diameter, 0.5mm pitch) under GPU or memory chips to transfer heat to inner copper planes. For OAM, thermal vias are often filled with thermally conductive epoxy.

5.3 Heat Sink Integration for AI Server PCB

Some PCBs feature integrated heat sinks (e.g., aluminum or copper baseplates) attached via thermal interface materials (TIMs). For high-layer count designs, consider using metal core PCB (MCPCB) technology for specific regions.

5.4 Simulation and Modeling for AI Server PCB

Use CFD (Computational Fluid Dynamics) tools like Flotherm or Icepak to predict hotspot temperatures. Aim for junction temperatures <85°C for GPUs.

6. Quality and Reliability Standards for AI Server PCB

For B2B applications, compliance with industry standards is non-negotiable for AI Server PCB. Key standards include IPC, UL, reliability testing, and cleanliness.

6.1 IPC Standards for AI Server PCB

IPC-6012 (Rigid PCBs), IPC-6018 (High-Frequency), and IPC-A-600 (Acceptability). For AI Server PCB, Class 3 (High Reliability) is mandatory.

6.2 UL Certification for AI Server PCB

UL 94 V-0 for flammability, and UL 746E for thermal endurance.

6.3 Reliability Testing for AI Server PCB

Thermal cycling (-55°C to +125°C, 500 cycles), moisture sensitivity (MSL 1-3), and insulation resistance testing (≥1000 MΩ at 500V DC).

6.4 Cleanliness for AI Server PCB

No-clean flux residues must be controlled to avoid electrochemical migration (ECM). Use ionic cleanliness testing (≤1.0 µg NaCl/cm²).

7. Applications and Future Trends for AI Server PCB

AI Server PCB is used in data centers, edge AI, and high-performance computing (HPC). Future trends include higher layer counts, embedded components, and photonic integration.

7.1 Data Centers and AI Server PCB

For training and inference workloads (e.g., GPT-4, BERT). AI Server PCB designs must handle massive parallel processing and high bandwidth.

7.2 Edge AI and AI Server PCB

Smaller form factors (e.g., OAM-like modules) for autonomous vehicles and IoT. These AI Server PCB designs require ruggedness and low latency.

7.3 High-Performance Computing (HPC) and AI Server PCB

For scientific simulations (e.g., climate modeling, drug discovery). AI Server PCB with 40+ layers is common.

7.4 Future Trends in AI Server PCB

Higher layer counts up to 50+ for next-generation AI chips (e.g., NVIDIA Blackwell). Embedded components (resistors, capacitors, active dies) for shorter interconnects. Photonic integration with optical waveguides for ultra-high bandwidth (e.g., 1 Tbps).

8. Sourcing and Partnering with a Reliable AI Server PCB Manufacturer

When selecting a PCB supplier for AI Server PCB projects, consider capabilities, certifications, lead time, and customer support.

8.1 Capabilities for AI Server PCB

Maximum layer count (≥30), minimum line/space (3/3 mil), and aspect ratio (≥10:1).

8.2 Certifications for AI Server PCB

ISO 9001, ISO 14001, IATF 16949 (for automotive AI), and UL certification.

8.3 Lead Time for AI Server PCB

10–15 business days for prototypes, 20–30 days for production.

8.4 Customer Support for AI Server PCB

Engineering support for DFM (Design for Manufacturing) and stack-up recommendations.

Why Choose Us? Our facility specializes in high-layer count PCBs (up to 40 layers), heavy copper (up to 6 oz), and advanced materials (Megtron, Rogers). We offer turnkey services from design review to assembly, with a 98% first-pass yield for AI Server PCB boards. Contact us for a free DFM analysis and quote.
